X,Y,Z Motorized Rotary Stage:WN303RA200S Featured Image
  • X,Y,Z Motorized Rotary Stage:WN303RA200S

X,Y,Z Motorized Rotary Stage:WN303RA200S

Short Description:


Product Detail

Product Tags



Model
WN303RA200S

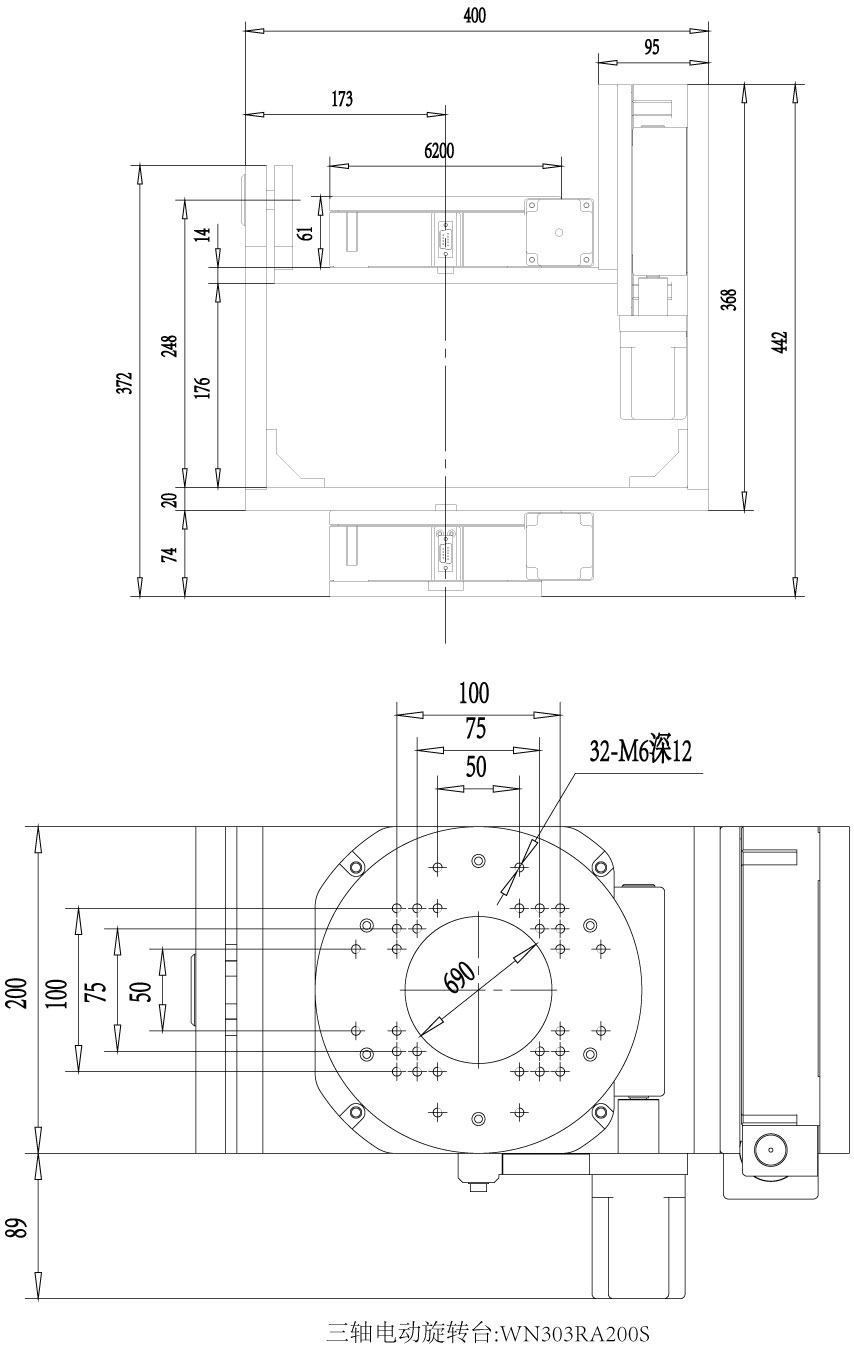

Structure
Description
Rotation Range
Around the X, Y, Z-axis 360 °
Worm Gear Ratio
180∶1
Drive Mechanism
Motorized Rotation Stage
Travel Guide
Bearing
Stepper Motor(1.8°)
SST57D3301
Base Material
Aluminum  Alloy
Surface Treatment
Black-Anodized
Center Load Capacity
25kg
Weight
36kg
Accuracy
Resolution
0.01°=36″（Non-MS Driver）
0.0005°=1.8″（20MS Drive）
Speed
10°/sec
Repeatability
0.01°=36″
Mainly Composed Modules：WN03RA200S

















Features:
.Standard stepper motors and RS232 interface.
.Compatible with the Models WNMPC08 Series of Motion Controller
.Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life
. Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash
