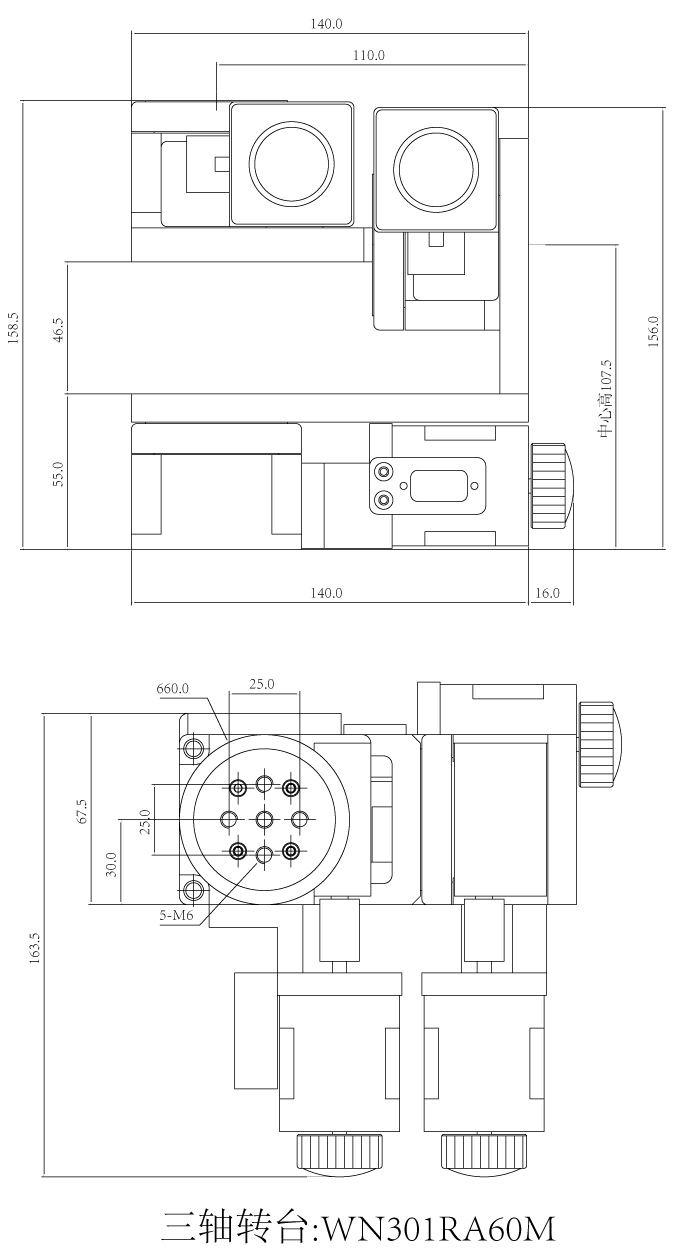

X,Y,Z Motorized Rotary Stage: WN301RA60M

Short Description:

Send email to us

Product Detail

Product Tags

Model		WN301RA60M
Structure Description	Rotation Range	Around the X, Y, Z-axis 360 °
	Worm Gear Ratio	90:1
	Drive Mechanism	Motorized Rotation Stage
	Travel Guide	Bearing
	Stepper Motor(1.8°)	SST57D3301
	Base Material	Aluminum Alloy
	Surface Treatment	Black-Anodized
	Center Load Capacity	5kg
	Weight	3.3kg
Accuracy	Resolution	0.01°=36″（Non-MS Driver） 0.0005°=1.8″（20MS Drive）
	Speed	18°/sec
	Repeatability	0.01°=36″
	Mainly Composed Modules：WN01RA60M

Features:

.Standard stepper motors and RS232 interface.

.Compatible with the Models WNMPC08 Series of Motion Controller

.Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life

. Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash
