X,Y Integrated Linear Stages:WN202WA100X100

Model

WN202WA100X100

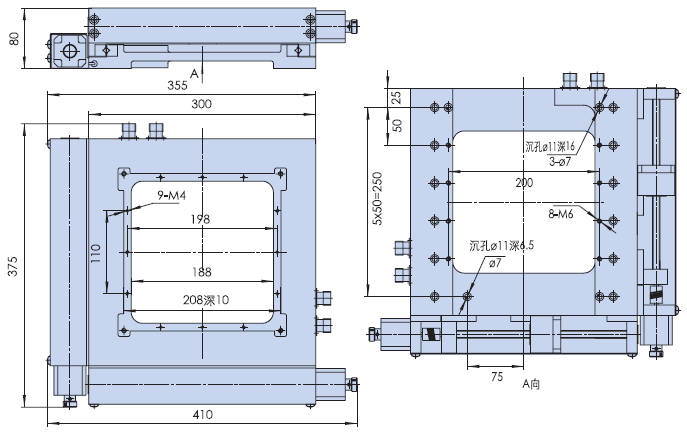

Structure
Description

Travel Range

100 mm

Table Size

300 X 300mm

Screw Spec.

High Precise Ball Screw (Thread Lead 4 mm)

Travel Guide

Precision V-groove & Crossed Roller

Stepper Motor(1.8°)

STP-42D3016

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

50 kg

Weight

8.3kg

Accuracy

Description

Resolution

20μ(non MicroStep) 1μ(20 MicroStep Driver in use)

Maximum Speed

40mm /sec

Repeatability

2μ

Positional Accuracy

3μ

Straightness

5µ

Driving Parallelism

15µ

Pitching

50″

Yawing

25″

Backlash

2µ

Lost Motion

2µ

Accessories
Description

Grating (G)

Servo Motor (D)
