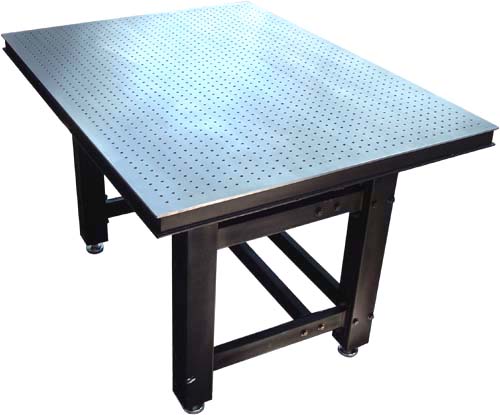

Vibration Isolating Tables:WN01VD Series

Short Description:


Product Detail

Product Tags



Model & Size(mm)

L-W-H

Supports & Mounting Holes

WN01VD600x600x80

600-600-800

4 Supports  M6 on 25mm Grid

WN01VD750x750x80

750-750-800

4 Supports  M6 on 25mm Grid

WN01VD900x600x80

900-600-800

4 Supports  M6 on 25mm Grid

WN01VD1200x800x100

1200-800-800

4 Supports  M6 on 25mm Grid

WN01VD1500x1000x100

1500-1000-800

4 Supports  M6 on 25mm Grid

WN01VD1800x1200x200

1800-1200-800

4 Supports  M6 on 25mm Grid

WN01VD2000x1000x200

2000-1000-800

4 Supports  M6 on 25mm Grid

WN01VD2000x1200x200

2000-1200-800

4 Supports  M6 on 25mm Grid

WN01VD2000x1500x200

2000-1500-800

4 Supports  M6 on 25mm Grid

WN01VD2400x1200x200

2400-1200-800

4 Supports  M6 on 25mm Grid

WN01VD2400x1500x200

2400-1500-800

4 Supports  M6 on 25mm Grid

WN01VD3000x1000x300

3000-1000-800

6 Supports  M6 on 50mm Grid

WN01VD3000x1200x300

3000-1200-800

6 Supports  M6 on 50mm Grid

WN01VD3000x1500x300

3000-1500-800

6 Supports  M6 on 50mm Grid

WN01VD3500x1200x300

3500-1200-800

6 Supports  M6 on 50mm Grid

WN01VD3500x1500x300

3500-1500-800

6 Supports  M6 on 50mm Grid

WN01VD4000x1500x300

4000-1500-800

6 Supports  M6 on 50mm Grid

WN01VD4500x1500x300

4500-1500-800

6 Supports  M6 on 50mm Grid

WN01VD5000x1500x300

5000-1500-800

8 Supports  M6 on 50mm Grid

WN01VD6000x1500x300

6000-1500-800

8 Supports  M6 on 50mm Grid

WN01VD8000x1500x300

8000-1500-800

8 Supports  M6 on 50mm Grid



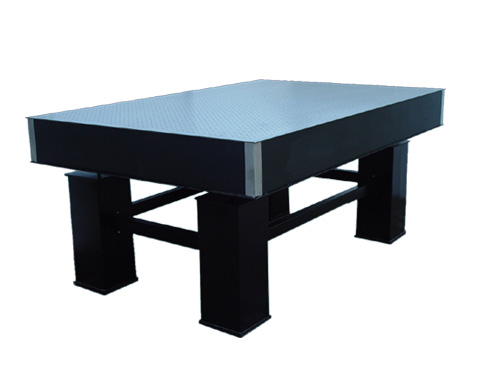

1. Optical Tops
Construction: Honeycomb core sandwiched structure
Core: Plated steel honeycomb
Top Skin: 5mm thickness ferromagnetic stainless steel plate, brush finished
Side Walls: carbon steel plate with damped wood composite, vinyl covered finish
Bottom Skin: 5.0mm thickness carbon steel plate epoxy painted finish
Surface Flatness: <0.05mm/m2
Surface
Coarseness: 0.8um-1.6 um
Swing: <5um
Mounting holes:Metric: M6-1.0 holes on 25mm or 50mm grid
Damping: Broadband standard damping

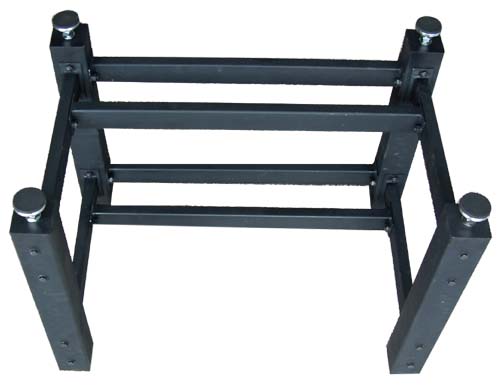

2. Isolation Supports
Natural Frequency of System: 3-6Hz

Load Capacity: 400kg-2500kg
