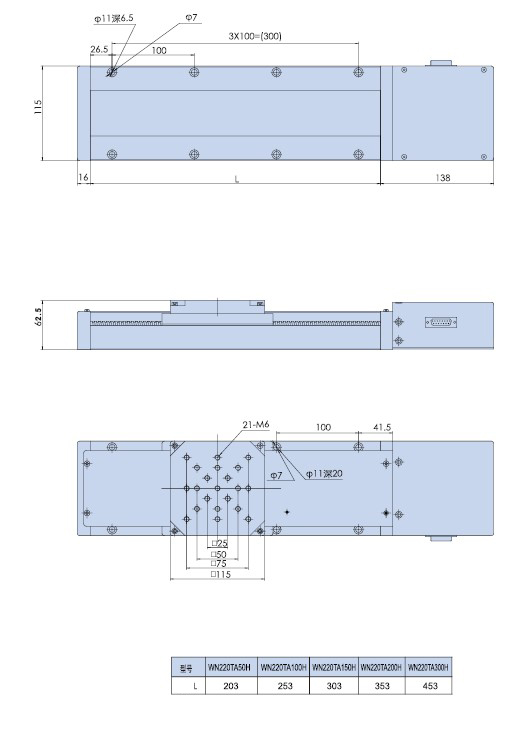

Ultra Precision:WN220TA(50-300)H

Model

WN220TA50H

WN220TA100H

WN220TA150H

WN220TA200H

WN220TA300H

Structure
Description

Travel Range

50 mm

100 mm

150 mm

200 mm

300 mm

Table Size

115×115mm

115×115mm

115×115mm

115×115mm

115×115mm

Screw Spec.

High Precise Ball Screw (Travel Range 4 mm)

Travel Guide

High Precise Linear Ball Bearing

Stepper Motor(1.8°)

STP-42D3016

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

15kg

15kg

10kg

7 kg

5kg

Weight

2.8kg

3.4kg

4.5kg

5.2kg

6.3kg

Accuracy

Description

Resolution

20μ/Pulse (non MicroStep)

1μ/Pulse (20 MicroStep Driver in use)

Maximum Speed

40mm /sec

Repeatability

1μ

Positional Accuracy

3μ

Straightness

2µ

4µ

4µ

6µ

6µ

Driving Parallelism

10µ

12µ

12µ

15µ

15µ

Pitching

25″

50″

50″

60″

60″

Yawing

20″

25″

25″

30″

30″

Backlash

2µ

2µ

2µ

2µ

2µ

Lost Motion

3µ

3µ

3µ

3µ

3µ

Accessories
Description

Cut Powder Brake Function (Z)

Grating (G)

Servo Motor (D)

Dustproof Cover (F)
