Ultra Precision:WN200TA(50-600)H

Short Description:


Product Detail

Product Tags





Model

WN200TA50H

WN200TA100H

WN200TA150H

WN200TA200H

WN200TA300H

WN200TA40H

WN200TA500H

WN200TA600H

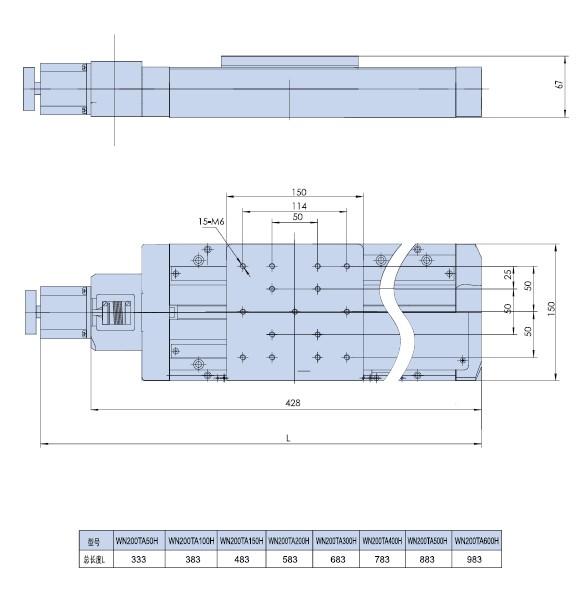

Structure
Description

Travel Range

50 mm

100 mm

150 mm

200 mm

300 mm

400 mm

500 mm

600 mm

Table Size

150×150mm

150×150mm

150×150mm

150×150mm

150×150mm

150×150mm

150×150mm

150×150mm

Screw Spec.

High Precise Ball Screw (4mm Lead)

High Precise Ball Screw (5mm/10mm Lead)

Travel Guide

High Precise Linear Slide Guide

Stepper Motor(1.8°)

STP-42D3016

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

20kg

30kg

50 kg

Weight

2.8kg

3.4kg

4.5kg

5.2kg

6.3kg

7.2kg

8.3kg

10.3kg

Accuracy

Description

Resolution

20μ/Pulse (non Micro Step)
 1μ/Pulse (20 Micro Step Driver in use)

25μ/Pulse (non Micro Step)
1.25μ/Pulse (20 Micro Step Driver in use)

Maximum Speed

40mm /sec

50mm /sec

Repeatability

1μ

2μ

Positional Accuracy

3μ

5μ

Straight, ness

Driving Parallelism

10µ

15µ

20µ

Pitching

25

50

60

Yawing

20

25

30

Backlash

Lost Motion
