Ultra-High Precision Stainless Steel Motorized Lin

Short Description:

Product Detail

Product Tags

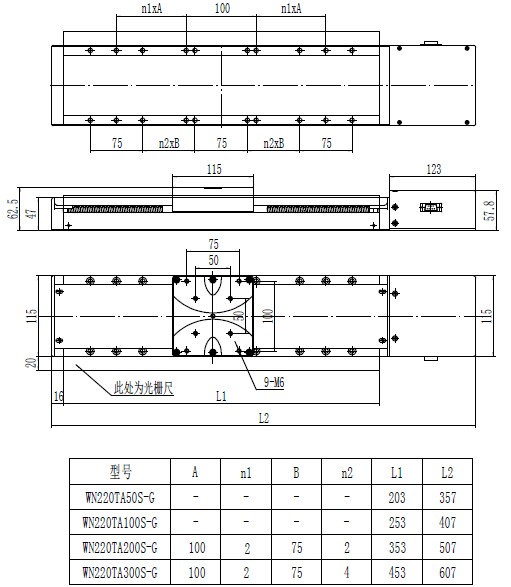

Model		WN220TA50S-G	WN220TA100S-G	WN220TA200S-G	WN220TA300S-G
Structure Description	Travel Range	50mm	100mm	200mm	300mm
	Table Size	115×115mm	115×115mm	115×115mm	115×115mm
	Bearing Construction	High Precise Ball Screw (5mm Lead)
	Travel Guide	High Precise Linear Slide Guide
	Stepper Motor(0.72°)	5-Phases Stepper Motor
	Base Material	Stainless Steel
	Load Capacity	30 kg
	Weight	8kg	10kg	12kg	13kg
Accuracy Description	Design Resolution	10μ（Non-MS Drive） 0.5μ（20 MS Drive）
	Max. Velocity	25mm/sec
	Repeatability	＜1μ
	Straightness	8μ		10μ	15μ
	Parallelism	15μ		20μ	25μ
Accessories Description	RENISHAW 0.1µ Grating Scale

Features:

.High precise ball screw provides high-performance and high-accuracy

.High-load was required by the high precise linear slide guide

.The design of semi-dustcover requires for the universal in industrial processing or laboratory

.The host material is stainless steel, itself is relatively heavy, so that the table stability higher, and little effect when temperature and humidity changes large

.Different travels can be designed

.Applies to use in single axis or assemble into multi-axis stages
