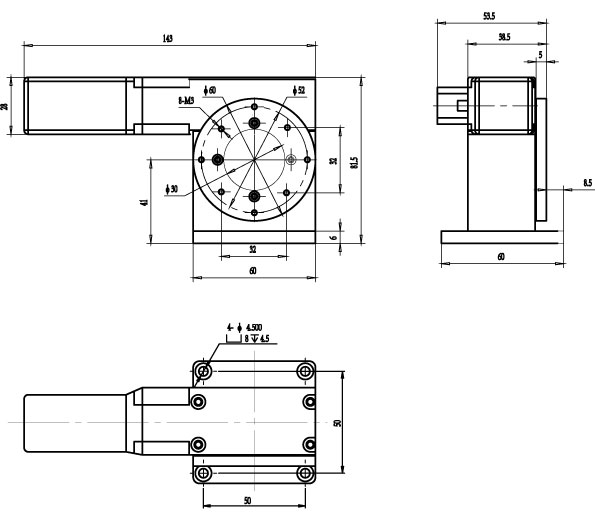

Model | WNKS431-60 | Structure Description | Angle Range | 360° | Stage Diameter | φ60mm | Transmission Ratio | 90:1 | Actuator Type | Belt | Travel Guide | Bearing | Stepper Motor(1.8°) | SST42D2121 | Base Material | Aluminum Alloy | Surface Treatment | Black-anodized | Load Capacity | 3kg | Weight | 1kg | Accuracy Description | Resolution | 3.6°(non MicroStep) 0.18°(20MicroStep Driver) | Speed | 720°/sec | Repeatability | 0.005°=18″ | Backlash | 0.005°=18″ | Eccentric | 5μ | Lost Motion | 0.005°=18″ | Parallelism | 80μ |
Features: .Standard stepper motors and RS232 interface. .Compatible with the Models WNMPC08 Series of Motion Controller |
|
