Precision Rotation Stage
Features
● The table can be rotated 360° for rough adjustment
● Fine adjustment of ±3° is possible. The fine adjustment is driven by a fine-thread screw and spring
● Reset, high resolution, no empty return
● Precision shaft system design, adjustable shaft system clearance and good stability
● 360° marking on the circumference for easy reading
● Central aperture for easy access to light or installation and connection of other products
● There are connecting holes with standard hole spacing on the upper and lower parts to facilitate connection and assembly with other displacement stages.
● Chengduo dimensional mobile station
Specifications
| Model | WN01RM56 | WN01RM73 | WN01RM82 | WN01RM82-1 |
| Stage Diameter | Φ56mm | Φ73mm | Φ82mm | Φ82mm |
| Actuator Type | Feeding Screw | Feeding Screw | Micrometer Head Type | Screw Thread |
| Travel (coarse/fine) | 360°/±3° | 360°/±3° | 360°/±10° | 360°/±10° |
| Graduations | 2° | 1° | 1° | 1° |
| Minimum Readout (Resolution) | 5′ | 5′ | 2’ | 2’ |
| Minimum Adjust Distance | 10″ | 6″ | 15″ | 15″ |
| Load Capacity | 2kg | 5kg | 5kg | 5kg |
| Central Aperture | M27×1 | M27×1 | ||
| Surface Roundness | 60μ | 60μ | 60μ | 60μ |
| Transversal Deviation | 30μ | 30μ | 30μ | 30μ |
| Parallelism | 60μ | 60μ | 60μ | 60μ |
| Weight | 0.15kg | 0.35kg | 0.5kg | 0.5kg |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Finish(Surface Treatment) | Black-anodized | Black-anodized | Black-anodized | Black-anodized |
| l Sensitivity to 15 arc sec
l 360° coarse/±3° fine motion l Convenient array of tapped mounting holes l 27 mm diameter threaded aperture |
||||

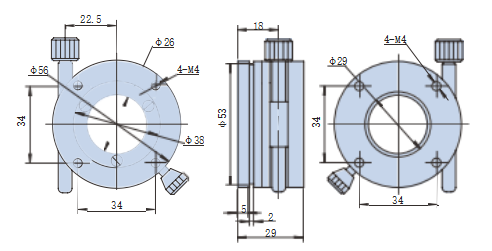

Drawing
