Model | WN03RA200M | Key Features | · Direct-drive concept provides faster rotating speeds and enhanced position sensitivity · Ultra-low profile design – only 49 mm in height · High efficiency DC torque motor optimizes available torque · Proprietary glass scale encoder ensures 0.005° repeatability · 200 mm diameter through-hole for convenient cable routing |

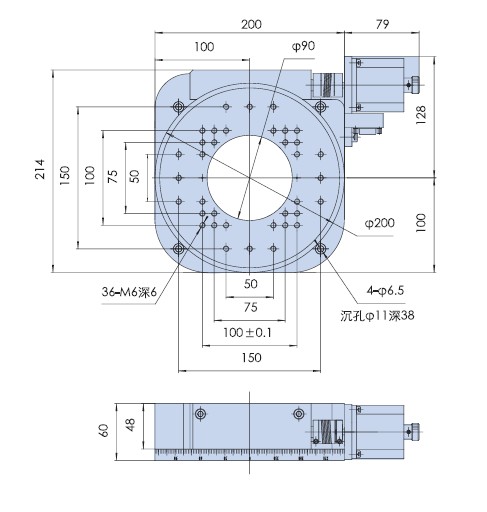

| Structure
Description | Angle Range | 360° | Stage Diameter | Φ200mm | Transmission Ratio | 180∶1 | Actuator Type | Worm Gear | Travel Guide | Bearing | Stepper Motor(1.8°) | SST57D3301 | Base Material | Aluminum Alloy | Surface Treatment | Black-anodized | Load Capacity | 55kg | Weight | 7.9kg | Accuracy Description | Resolution | 0.01° (non MicroStep) 0.0005°=1.8″(20 MicroStep Driver in use) | Speed | 25°/sec | Repeatability | 0.005°=18″ | Positional Accuracy | 0.01°=36″ | Surface Roundness | 15µ | Backlash | 0.005°=18″ | Transversal Deviation | 20µ | Lost Motion | 0.005°=18″ | Parallelism | 100µ |
|
| |
