Model | WN01RA60M | Key Features | · Direct-drive concept provides faster rotating speeds and enhanced position sensitivity · Ultra-low profile design – only 49 mm in height · High efficiency DC torque motor optimizes available torque · Proprietary glass scale encoder ensures 0.005° repeatability · 60 mm diameter through-hole for convenient cable routing |

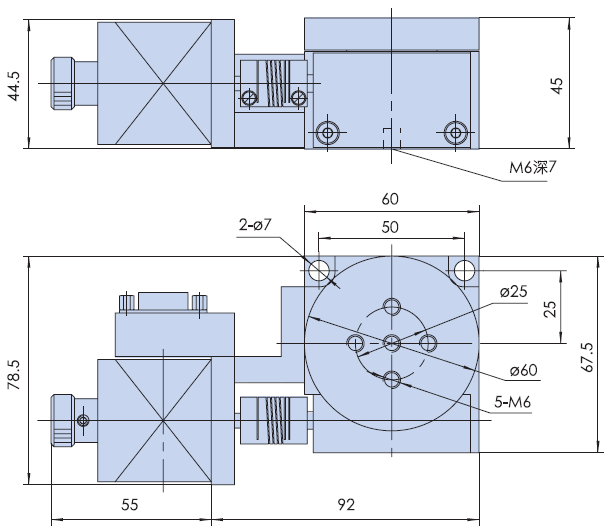

| Structure
Description | Angle Range | 360° | Stage Diameter | Φ60mm | Transmission Ratio | 90∶1 | Actuator Type | Worm Gear | Travel Guide | Bearing | Stepper Motor(1.8°) | SST42D2121 | Base Material | Aluminum Alloy | Surface Treatment | Black-anodized | Load Capacity | 30kg | Weight | 1.2kg | Accuracy Description | Resolution | 0.02° (non MicroStep) 0.001°=3.6″(20 MicroStep Driver in use) | Speed | 50°/sec | Repeatability | 0.005°=18″ | Positional Accuracy | 0.01°=36″ | Surface Roundness | 15µ | Backlash | 0.005°=18″ | Transversal Deviation | 5µ | Lost Motion | 0.005°=18″ | Parallelism | 80µ |
|
| |
