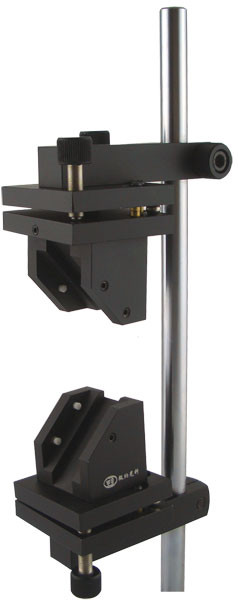

Beam Steerers:WN02BS180
ModelWN02BS180Key Features Precise beam direction and height control Two mirror mounts with precision tip/tilt and rotation Fine angular adjustment with 5 arc sec sensitivity High-stability 1 in. (25.4 mm) diameter stainless steel post Securely mounts anywhere on an optical table Compatible with standard 1 in. (25.4 mm) diameter mirrorsEntrance Aperture Height180mmAngular Adjustment Range±4°Weight0.8kg -
Beam Steerers:WN01BS500
ModelWN01BS500Key Features Precise beam direction and height control Two mirror mounts with precision tip/tilt and rotation Fine angular adjustment with 5 arc sec sensitivity High-stability 1 in. (25.4 mm) diameter stainless steel post Securely mounts anywhere on an optical table Compatible with standard 1 in. (25.4 mm) diameter mirrorsA (Aperture Diameter)20mm25mm30mmEntrance Aperture Height500mmAngular Adjustment Range±4°Surface TreatmentBlack-anodized -
Beam Steerers:WN03BS180
ModelWN03BS180Key Features Precise beam direction and height control Two mirror mounts with precision tip/tilt and rotation Fine angular adjustment with 5 arc sec sensitivity High-stability 1 in. (25.4 mm) diameter stainless steel post Securely mounts anywhere on an optical table Compatible with standard 1 in. (25.4 mm) diameter mirrorsA50-180mm57-180 mmB132 mm137 mmC（Aperture Diameter）50mm60 mmH324mm334mmL70mm80mmEntrance Aperture Height180mmAngular Adjustment Range±4°Weight1kg ... -
Beam Steerers:WN01BS180
ModelWN01BS180Key Features Precise beam direction and height control Two mirror mounts with precision tip/tilt and rotation Fine angular adjustment with 5 arc sec sensitivity High-stability 1 in. (25.4 mm) diameter stainless steel post Securely mounts anywhere on an optical table Compatible with standard 1 in. (25.4 mm) diameter mirrorsA（Aperture Diameter）20mm25 mm30 mmB32 mm32 mm36 mmEntrance Aperture Height180mmAngular Adjustment Range±4°Weight0.8kg -

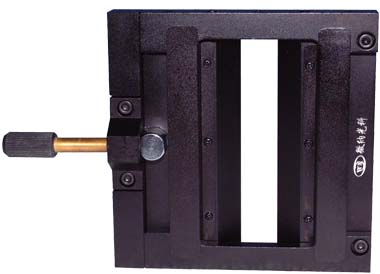

Slits:WN07ID10
ModelWN07ID10Key Featuresl Slit width adjustment sensitivity better than 1µml Adjustable slit widthl Aperture motion symmetrical to mountSlit Width Adjustment Range0—6 mmSlit Height10 mmWeight0.2 kg -
Slits:WN06ID100
ModelWN06ID100Key Featuresl Slit width adjustment sensitivity better than 1µml Adjustable slit widthl Aperture motion symmetrical to mountSlit Width Adjustment Range0—14mmSlit Height100mmWeight0.4kg -
Slits:WN05ID80-1
ModelWN05ID80-1Key Featuresl Slit width adjustment sensitivity better than 1µml Adjustable slit widthl Aperture motion symmetrical to mountSlit Width Adjustment Range0—14mmSlit Height80mmWeight0.3kg -

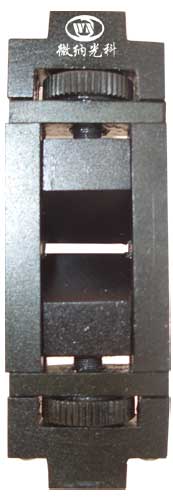

Slits:WN04ID20
ModelWN04ID20Key Featuresl Slit width adjustment sensitivity better than 1µml Adjustable slit lengthl Aperture motion symmetrical to mountl Right-or left-hand micrometer configurationsSlit Width Adjustment Range0—20mmSlit Length Adjustment Range0—20mmWeight0.2... -
Slits:WN05ID80
ModelWN05ID80Key Featuresl Slit width adjustment sensitivity better than 1µml Adjustable slit widthl Aperture motion symmetrical to mountSlit Width Adjustment Range0—14mmSlit Height80mmWeight0.3kg -

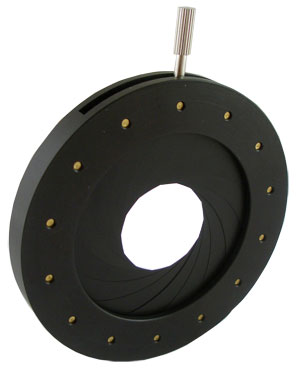

Iris Diaphragm:WN03ID48
ModelWN03ID48Key Featuresl Smooth, continuous aperture controll Wide aperture range l Compatible with our mounts and positionersAperture RangeØ2.5mm—Ø48mm -
Iris Diaphragm:WN03ID52B
ModelWN03ID52BKey Featuresl Smooth, continuous aperture controll Wide aperture range l Compatible with our mounts and positionersAperture RangeØ2.5mm—Ø52mm -
Iris Diaphragm:WN03ID52A
ModelWN03ID52AKey Featuresl Smooth, continuous aperture controll Wide aperture range l Compatible with our mounts and positionersAperture RangeØ2.5mm—Ø52mm
