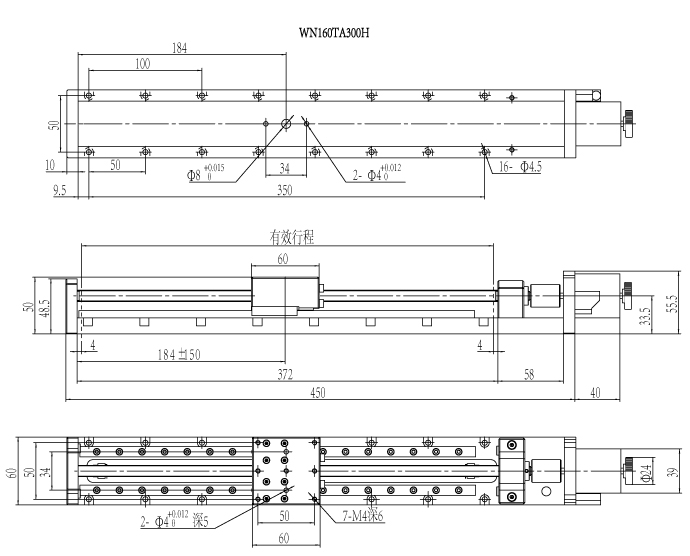

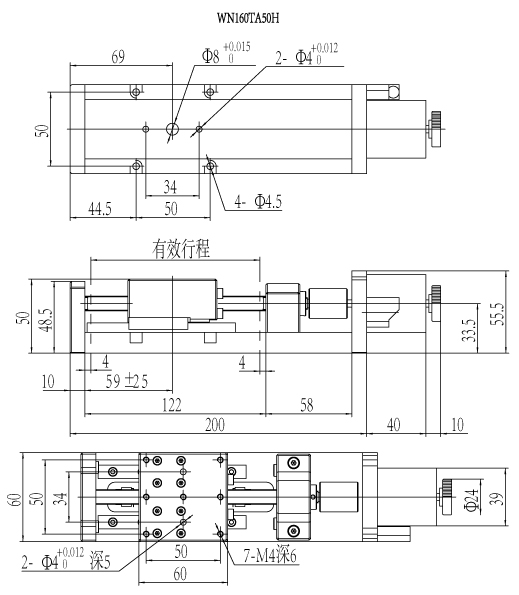

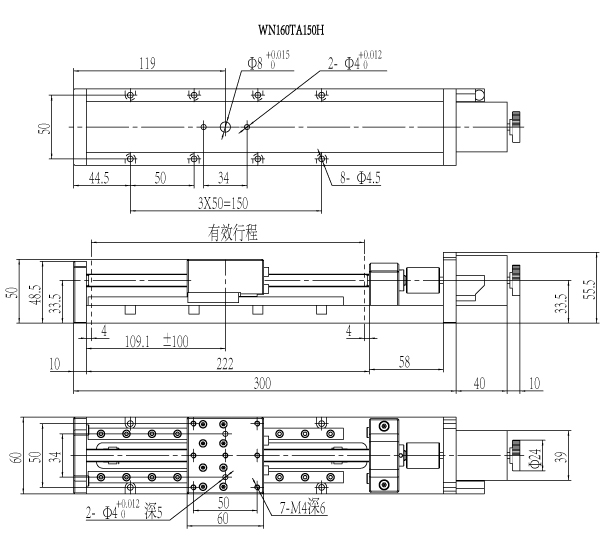

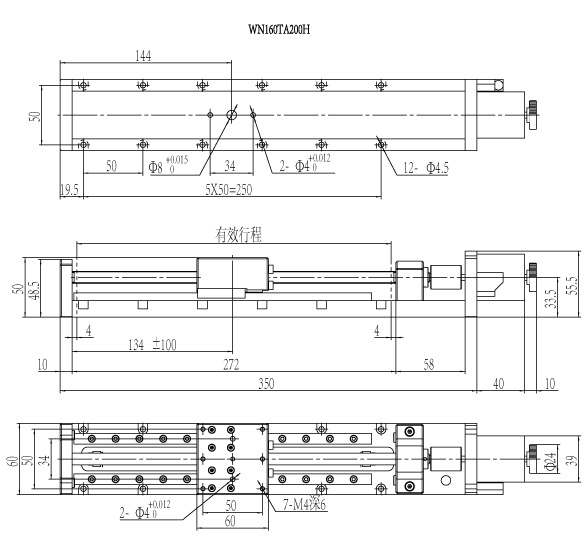

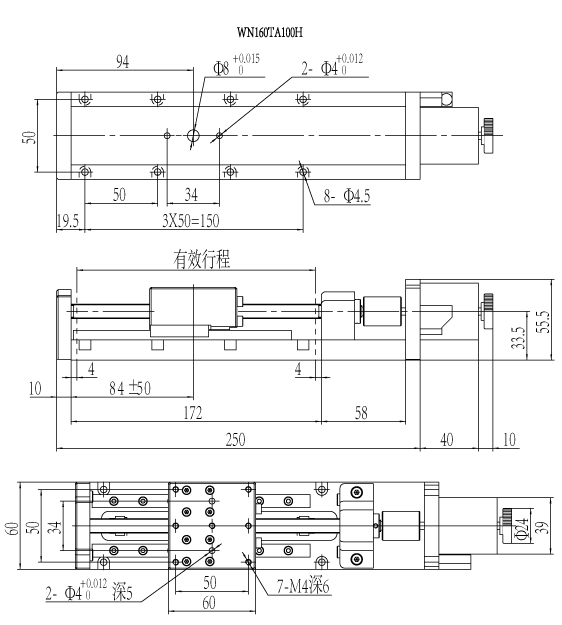

Model | WN160TA50H | WN160TA100H | WN160TA150H | WN160TA200H | WN160TA300H | WN160TA400H | Structure
Description | Travel Range | 50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm | Table Size | 60×60mm | Bearing Construction | Ball Screw（2 mm of leading） | Travel Guide | High Precise Linear Slide Guide | Stepper Motor(1.8°) | STP-35D3016 | Base Material | Aluminum Alloy | Surface Treatment | Black-Anodized | Load Capacity | 8 kg | 5 kg | 3kg | Travel Range | 1.4kg | 1.7kg | 2.3kg | 2.6kg | 3kg | 3.5kg | 4.5kg | Accuracy Description | Design Resolution | 10μ（ Non-MS Driver）
0.5μ（20MS Driver） | Max. speed | 15mm/sec | Repeatability | 2μ | Straightness | 5µ | 6µ | 8µ | Parallelism | 10µ | 15µ | 20µ | Pitching | 25″ | 50″ | 60″ | Yawing | 20″ | 25″ | 30″ | Backlash | 2µ | Lost step | 3µ | 5µ | Accessories
Description | Brake Function(-Z) | Grating Scale (G) | Servo Motor(-D) | Dust-proof Cover(-F) | | | | | | | | | | |
Features: .Drived by imported precision ball screw,small axial clearance, long life .Applies to use in single axis or assemble into multi-axis stages |
| |
