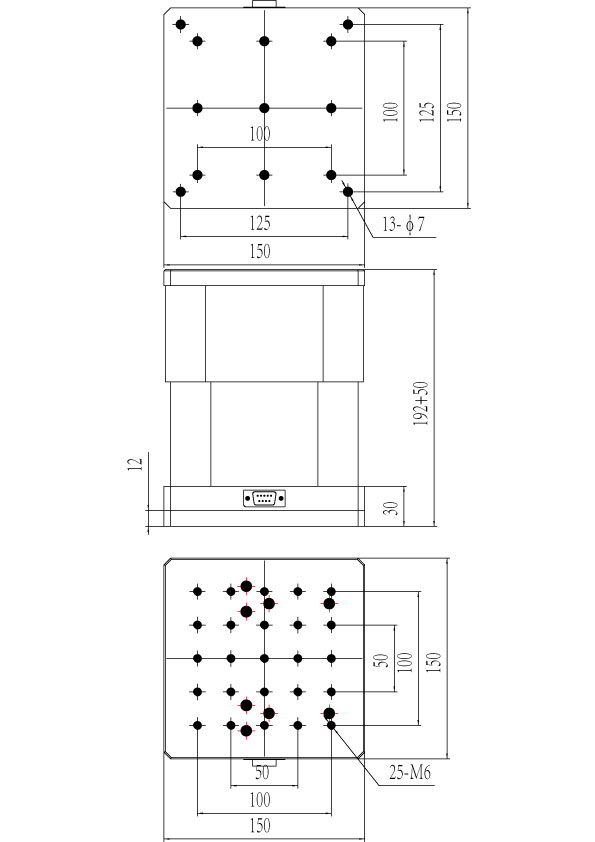

Model | WN05VA50 | Structure
Description | Travel Range | 50 mm | Table Size | 150 mm×150 mm | Actuator Type | Ball Screw | Travel Guide | Linear Rail | Stepper Motor(1.8°) | STP-57BXG152 | Base Material | Aluminum Alloy | Surface Treatment | Black-anodized | Load Capacity | 20kg | Weight | 3.1kg | Accuracy Description | Resolution | 5µ (non MicroStep) 1µ(20 MicroStep Driver in use) | Speed | 20mm/sec | Repeatability | 5µ | Backlash | 4µ | Lost Motion | 3µ |
Features: .Standard stepper motors and RS232 interface. .Compatible with the Models WNMPC08 Series of Motion Controller .Lab jack the low overall height, different spaces to meet customer requirements .Accept the restructuring and customized products |
| |
