Motorized Lab Jacks:WN03VA300

Short Description:


Product Detail

Product Tags



 src=

Model

WN03VA300

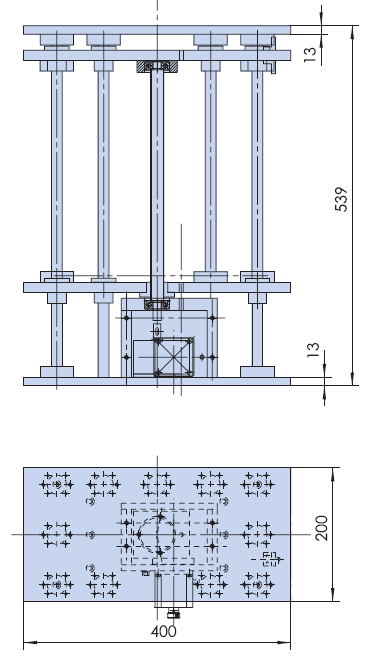

Structure
Description

Travel Range

300 mm

Table Size

180 mm×120 mm

Actuator Type

Grinding Screw

Travel Guide

Slide Rail

Stepper Motor(1.8°)

SST57D2121

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

50kg

Weight

10.5kg

Accuracy

Description

Resolution

0.75µ (non MicroStep)

Speed

3mm/sec

Repeatability

5µ

Positional Accuracy

15µ

Backlash

4µ

Lost Motion

Key Features

·         Unique inclined plane concept delivers 60 mm of precision vertical motion in an ultra-low profile design

·         Higher load capacity compared to vertically mounted linear stages

·         Free access to the moving platform from any side

·         Integrated linear encoder provides 0.01 mm position feedback for highly repeatable and accurate motion
