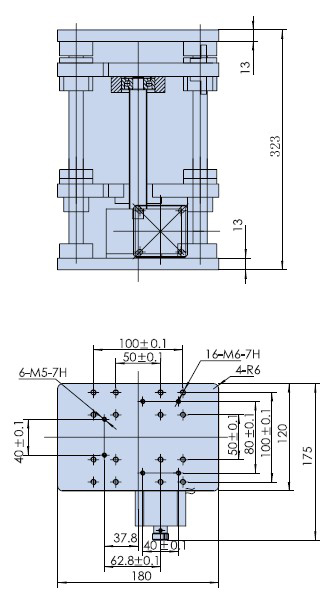

Model | WN03VA100 | Structure
Description | Travel Range | 100 mm | Table Size | 180 mm×120 mm | Actuator Type | Grinding Screw | Travel Guide | Slide Rail | Stepper Motor(1.8°) | SST57D2121 | Base Material | Aluminum Alloy | Surface Treatment | Black-anodized | Load Capacity | 50kg | Weight | 10.5kg | Accuracy Description | Resolution | 0.75µ (non MicroStep) | Speed | 8mm/sec | Repeatability | 5µ | Positional Accuracy | 15µ | Backlash | 4µ | Lost Motion | 3µ | Key Features | · Unique inclined plane concept delivers 60 mm of precision vertical motion in an ultra-low profile design · Higher load capacity compared to vertically mounted linear stages · Free access to the moving platform from any side · Integrated linear encoder provides 0.01 mm position feedback for highly repeatable and accurate motion |
|
|
| |
