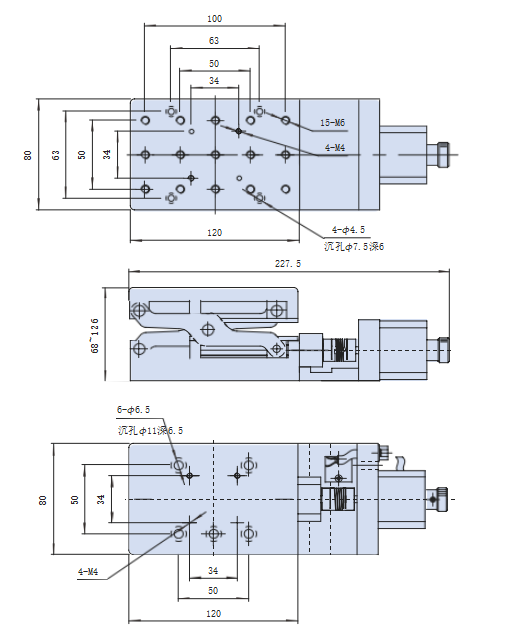

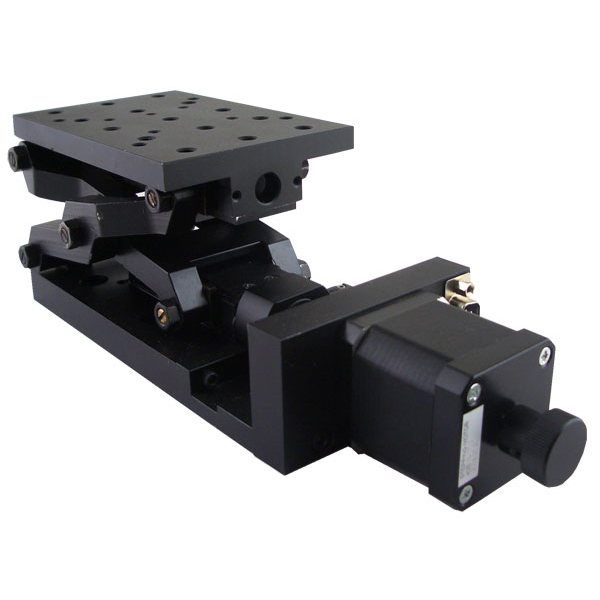

Motorized Lab Jack 60mm Travel Range Electric Lifting Platform

Minimum Adjustment: 5μm
Max Velocity: 5mm/sec
Bi-directional Repeatability: 10μm
Backlash: 10μm
Optional Accessories: Home Location, Servo Motor Limit Switches are Existing
● The company's WNSC series motion controller, developed in-house, comes standard with a stepper motor and an RS232 interface, enabling automated control.
● The lifting platform employs a scissor-type support system, double guide rails, and a five-axis over-positioning mechanism to ensure seamless movement, high load-bearing capacity, and an extended service life.
● By utilizing a precision ground screw drive, the motion is smooth and can be adjusted with minimal backlash, offering a comfortable lifting experience.
● The connection between the stepper motor and the screw is facilitated by high-quality imported elastic couplings, ensuring synchronized transmission and excellent depolarization performance. This setup significantly reduces eccentric disturbances and minimizes noise levels.
● The electric lifting table is versatile, capable of being used as a standalone flat surface or combined with other table types to create a multi-dimensional electric adjustment table.
● Equipped with limit and initial zero functions, the servo motor can be replaced, and a rotary encoder can be installed, allowing for product customization and modification to meet specific needs.
