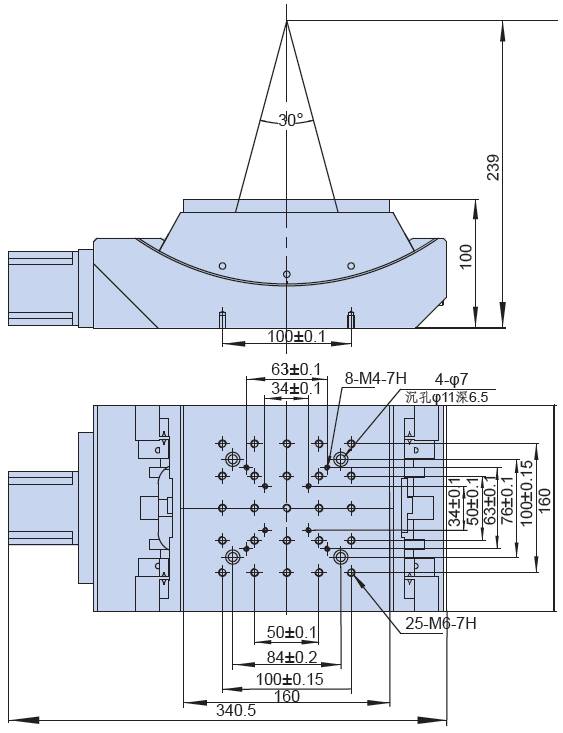

Motorized Goniometric Stages:WN04GA15

Model

WN04GA15

Angel Range

±15°

Table Size

160×160mm

Transmission Ratio

400∶1

Height of Rotation Stage

139mm±0.2 mm

Actuator Type

Worm Gear

Travel Guide

Crossed-roller Guide

Stepper Motor(1.8°)

SST42D2121

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

30kg

Weight

12kg

Resolution

≈0.007°≈25″(non MicroStep)
≈1.3″(20 MicroStep Driver in use)

Rotation Center Deflection Accuracy

0.03 mm

Speed

10°/sec

Repeatability

±3″

Positional Accuracy

±8″

Backlash

±3″

Lost Motion

2″
