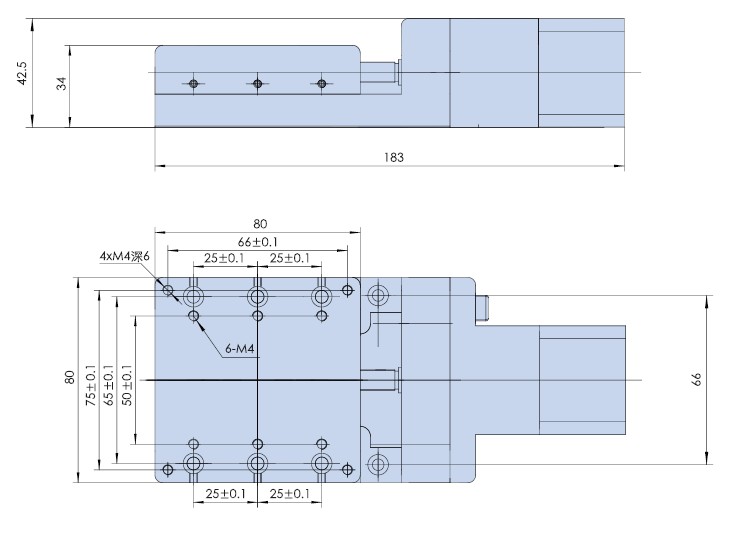

Mini Stage:WN260TA30H

Model

WN260TA30H

Structure
Description

Travel Range

30 mm

Table Size

80×80mm

Screw Spec.

High Precise Ball Screw (1 mm Lead)

Travel Guide

High Precise Linear Slide Guide

Stepper Motor(0.72°)

5 Phases

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

15kg

Weight

1.5kg

Accuracy
Description

Resolution

5μ/Pulse (non Micro Step)
 0.25μ/Pulse (20 Micro Step Driver in use)

Maximum Speed

1mm /sec

Repeatability

1μ

Positional Accuracy

2.5μ

Straightness

3µ

Driving Parallelism

4µ

Pitching

18″

Yawing

15″

Backlash

1µ

Lost Motion

1µ
