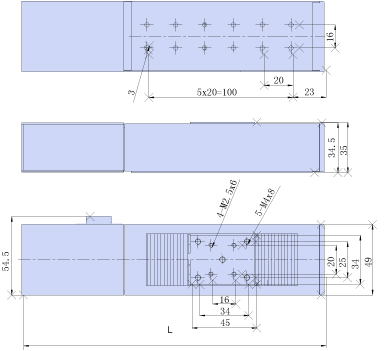

Model | WN265TA15H | WN265TA30H | WN265TA50H | Structure
Description | Travel Range | 15 mm | 30 mm | 50 mm | Table Size | 45×34mm | 45×34mm | 45×34mm | Bearing Construction | Grinding Lead screw（0.5 mm of leading） | Grinding Lead screw （0.5 mm of leading） | Travel Guide | High Precision Cross Roller Guide | Stepper Motor(1.8°) | 28STH30-0604A | Base Material | Stainless Steel | Surface Treatment | Black-Anodized | Load Capacity | 5kg | Weight | 2.2kg | 2.75kg | 3kg | Accuracy Description | Design Resolution | 2.5μ（Non-MS Drive）
0.125μ（20MS Drive） | 5μ（Non-MS Drive）
0.25μ（20MS Drive） | Max. Velocity | 5mm /sec | 10mm /sec | Repeatability | 2μ | 2.5μ | Straightness | 5µ | 8µ | Parallelism | 10µ | 15µ | Pitching | 25″ | Yawing | 20″ | Backlash | 1µ |
Features: .High precise ball screw and cross roller guide provides high-performance and high-accuracy .Low-profile ,high-accuracy and apply to low bearing capacity, low speed .The structure of crossed-roller bearing requires the precise movement .Original position and limit switches are at both ends which can supply the precision positioning and protection .Applies to use in single axis or assemble into multi-axis stages |
| |
