Manual Tilt Platforms
Features
Item Number: WN01SM3
Platform: 120mm × 80mm (4.72" x 3.15")
Tilt Range: ±3° in θx Adjustment
Sensitivity (Standard Micrometers): 5’
Drive Mechanism: Micrometer Head
Max Load Capacity: 10.0kg (22.0lbs)
Weight: 0.5kg (1.10lbs)
Material: Aluminum Alloy
Finish: Black-Anodized
Specifications
|
Model |
WN01SM3 |
|
||
|
Table Size |
120mm×80mm |
|||
|
Actuator Type |
Micrometer Head Single Axis Driver |
|||
|
Function |
θx Pitching Adjustment |
|||
|
Adjustment Range |
±3° |
|||
|
Minimum Adjust Distance |
5′ |
|||
|
Load Capacity |
10kg |
|||
|
Weight |
0.5kg |
|||
|
Material |
Aluminum Alloy |
|||
|
Finish(Surface Treatment) |
Black-anodized |

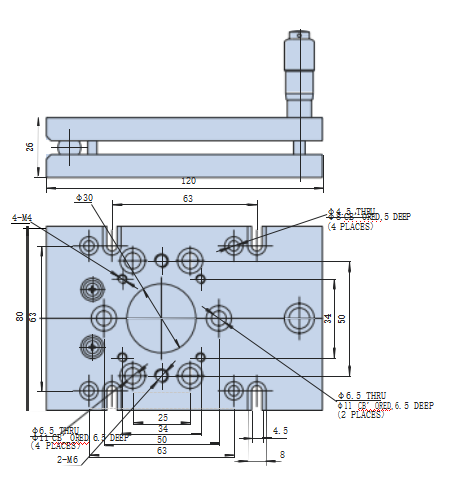

Drawing
