Long-Travel With High Load Capacity Of Motorized Lab Jack 300mm Of Vertical Travel

Short Description:

Item Number	WN03VA300
Travel Range	300mm (11.81″)

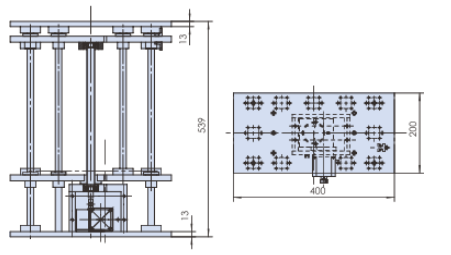

Dimension of Platform	400mm x 200mm (15.75″ x 7.87″)
Drive Mechanism	Gear Motor with High Precise Ball Screw
Travel Guide	Slide Rail

Send email to us

Product Detail

Product Tags

Features

Item Number: WN03VA300
Travel Range: 300mm (11.81")
Dimension of Platform: 400mm x 200mm (15.75" x 7.87")
Drive Mechanism: Gear Motor with High Precise Ball Screw
Travel Guide: Slide Rail Stepper Motor (1.8°): STP-57D3016 - Stepping Motor with 2-Phases & 1.8° of Step Angle Material – Finish: Aluminum Alloy - Black-Anodized Max On-Axis Load Capacity: 50kg (110.23lbs)
Weight: 23kg (50.71lbs)

Description

Minimum Adjustment: 5μm
Max Velocity: 2mm/sec
Bi-directional Repeatability: 5μm
Backlash: 8μm
Optional Accessories: Home Location, Servo Motor
Limit Switches are Existing

Specifications

Model

WN03VA300

Structure
Description

Travel Range

300 mm

Table Size

180 mm×120 mm

Actuator Type

Grinding Screw

Travel Guide

Slide Rail

Stepper Motor(1.8°)

SST57D2121

Base Material

Aluminum Alloy

Surface Treatment

Black-anodized

Load Capacity

50kg

Weight

10.5kg

Accuracy

Description

Resolution

0.75µ (non MicroStep)

Speed

3mm/sec

Repeatability

5µ

Positional Accuracy

15µ

Backlash

4µ

Lost Motion

3µ

Key Features

Unique inclined plane concept delivers 60 mm of precision vertical motion in an ultra-low profile design
Higher load capacity compared to vertically mounted linear stages
Free access to the moving platform from any side
Integrated linear encoder provides 0.01 mm position feedback for highly repeatable and accurate motion
