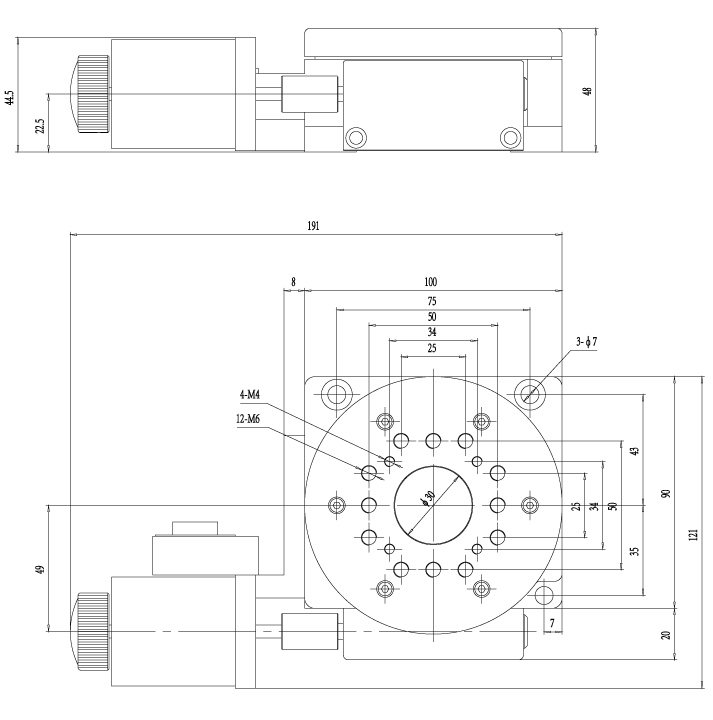

High Precision Rotary Stage:WN02RA100S



.Direct-drive concept provides faster rotating speeds and enhanced position sensitivity

.High efficiency DC torque motor optimizes available torque

.Proprietary glass scale encoder ensures 0.002° repeatability

. 100 mm diameter through-hole for convenient cable routing

.Standard stepper motors and RS232 interface.

.Compatible with the Models WNMPC08 Series of Motion Controller

.Rotating shafts using multi-channel technology of precision processing, with high precision, large capacity and long life

.Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash

.Can increase the limit function,  initial zero, change to servo motor, rotary encoder, accept the restructuring and customized products
