High Precision Motorized Linear Stage Travel Range 50-500mm High-Load Translation Stages
Features
● Precision ground ball screw drive allows rapid movement
● Precision linear ball bearings provide smooth linear motio
● XY stage, XYZ stage configuration option
● STP-57BXG152 stepper motor driven and DB9 interface
● Home switch and limit switches
● Hand wheel for manual drive
Description
The motorized linear translation stages are perfect for industrial and scientific automated motion applications. With their high accuracy, compact size, customizability and cost-effectiveness, they provide an ideal solution for precise positioning needs.
The WN230TA Series motorized linear stages with precision ground ball screws and linear ball bearings offer precise, rapid movements and accurate linear motion. The XY stage and XYZ stage configuration options provide versatility and the NEMA17 stepper motor driven by a DB9 interface offers powerful, consistent performance. Home switch and limit switches ensure safety and the hand wheel allows for manual drive when needed.
Specifications
| Model | WN230TA50M | WN230TA100M | WN230TA150M | WN230TA200M | WN230TA300M | WN230TA400M | WN230TA500M | |
| Structure Description |
Travel Range | 50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm | 500 mm |
| Table Size | 120×125mm | 120×125mm | 120×125mm | 120×125mm | 120×125mm | 160×160mm | 160×160mm | |
| Screw Spec. | High Precise Ball Screw (Travel Range 4 mm) | High Precise Ball Screw (Travel Range 5 mm) | ||||||
| Travel Guide | High Precise Linear Ball Bearing | |||||||
| Stepper Motor(1.8°) | STP-57BXG152 | |||||||
| Base Material | Aluminum Alloy | |||||||
| Surface Treatment | Black-anodized | |||||||
| Load Capacity | 20 kg | 20 kg | 30 kg | 30 kg | 30 kg | 30 kg | 50 kg | |
| Weight | 2.8kg | 3.4kg | 4.5kg | 5.2kg | 6.3kg | 12kg | 12kg | |
| Accuracy Description |
Resolution | 20μ/Pulse (non MicroStep) 1μ/Pulse (20 MicroStep Driver in use) |
25μ/Pulse (non MicroStep) 1.25μ/Pulse (20 MicroStep Driver in use) |
|||||
| Maximum Speed | 40mm /sec | 50 mm /sec | ||||||
| Repeatability | 5μ | |||||||
| Positional Accuracy | 8μ | |||||||
| Straightness | 5µ | 6µ | 8µ | |||||
| Driving Parallelism | 10µ | 15µ | 20µ | |||||
| Pitching | 25″ | 50″ | 60″ | |||||
| Yawing | 20″ | 25″ | 30″ | |||||
| Backlash | 2µ | |||||||
| Lost Motion | 3µ | 5µ | ||||||
| Accessories Description |
Cut Powder Brake Function (Z) | |||||||
| Grating (G) | ||||||||
| Servo Motor (D) | ||||||||
| Dustproof Cover (F) | ||||||||

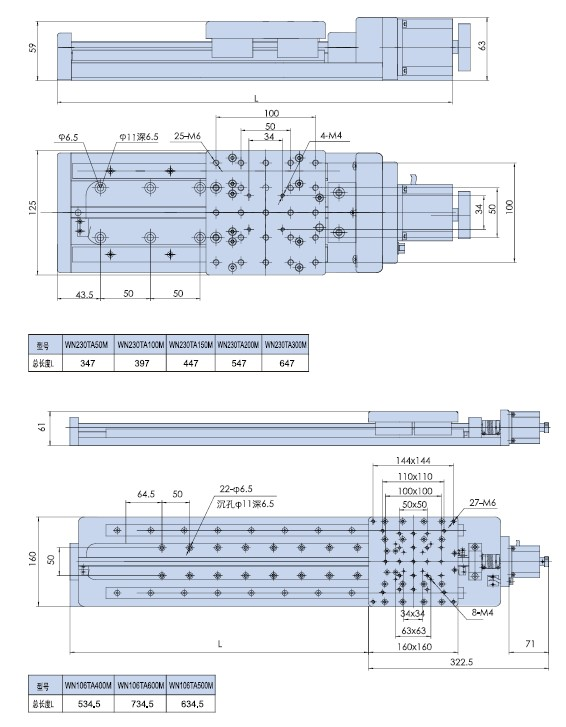

Drawing
