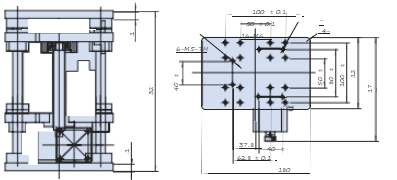

High-Load Motorized Lab Jack, in 100mm of Vertical Travel

Minimum Adjustment: 5μm
Max Velocity: 10mm/sec
Bi-directional Repeatability: 8μm Backlash: 10μm
Optional Accessories: Home
Location, Servo Motor
Limit Switches are Existing

● Standardly equipped with stepper motor and RS232 interface, the company's independently developed WNSC series motion controller can realize automated control
● The lifting platform adopts scissor-type lifting support and double guide rails and five-axis over-positioning mechanism to ensure smooth movement, large load-bearing capacity and long service life.
● Using precision ground screw drive, the movement is comfortable and can be lifted and lowered at will with minimal backlash.
● The stepper motor and screw are connected through imported high-quality elastic couplings, with synchronized transmission and good depolarization performance, which greatly reduces eccentric disturbance and has low noise.
● The electric lifting table can be used flat and can be combined with other types of tables to form a multi-dimensional electric adjustment table.
● With limit function and initial zero function, the servo motor can be replaced, a rotary encoder can be installed, and the product can be modified and customized.
