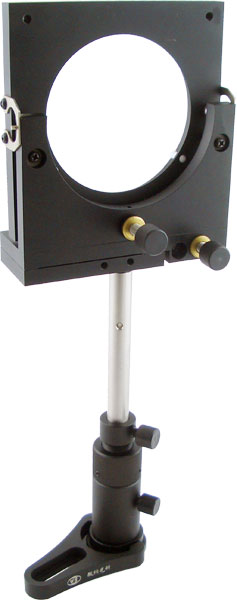

Gimbal Optical Mounts:WN02WX(50-106)

Short Description:


Product Detail

Product Tags

Model

WN02WX50

WN02WX80

WN02WX100

WN02WX102

WN02WX106

Key Features

  • Accommodates circular or rectangular optics to 16.5 in. (420 mm)
  • Versatile design accepts optics larger and smaller than nominal dimensions
  • Unlimited coarse rotation in elevation and azimuth, up to ±2° fine adjustment range

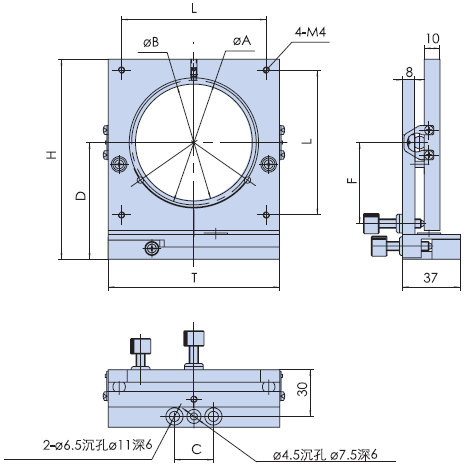

A

50 mm

80 mm

100 mm

102 mm

106 mm

B

48 mm

75 mm

95 mm

97 mm

107 mm

C



25 mm

25 mm

50 mm

50 mm

D

60 mm

75 mm

85 mm

86 mm

86 mm

L

57 mm

93 mm

113 mm

90 mm

84 mm

H

102 mm

128.5 mm

146.5 mm

151.5 mm

151.5 mm

T

84 mm

110 mm

130 mm

132 mm

132 mm

Angular Range

±5°

Weight

0.25 kg
