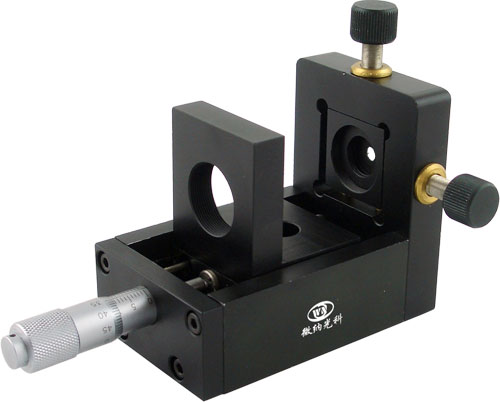

Space Filter:WN01SF
Model WN01SF Objective lens travel (mm) Tx 13 Pin hole travel (mm) Ty ±1.5 Tz ±1.5 Graduation(mm) 0.01 Precision (mm) 0.005 Weight(kg) 0.8 -
Fiber Couplers:WN02FC
Model Key Features Single-mode coupling efficiency near theoretical maximum 0.1 micron resolution Free-space laser and laser diode models Compact, post-mountable design Easy to use WN02FC -
Fiber Couplers:WN08FC
ModelKey FeaturesTwo degrees of precision positioning for bare, connnectorized, or polarization-preserving fibers. New high-resolution 100 TPI adjustment screws New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersWN08FC -
Fiber Couplers:WN07FC
ModelWN07FCKey Features Three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers New high-resolution, 0.25 mm XYθXθY adjustment screws,0.5 mm Z-adjustment New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersRange Z6mmRange X±2mmRange Y±2mmSensitivity, XY0.01μmRange, θX±4°Range, θY±4°Sensitivity, θXθY0.00001°&nb... -
Fiber Couplers:WN05FC
ModelWN05FCKey Features Three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers New high-resolution, 0.25 mm XYθXθY adjustment screws,0.5 mm Z-adjustment New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersRange Z6mmRange X±2mmRange Y±2mmSensitivity, XY0.01μmRange, θX±4°Range, θY±4°Sensitivity, θXθY0.00001° ... -
Fiber Couplers:WN06FC
ModelWN06FCKey Features Three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers New high-resolution, 0.25 mm XYθXθY adjustment screws,0.5 mm Z-adjustment New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersRange Z6mmRange X±2mmRange Y±2mmSensitivity, XY0.01μmRange, θX±4°Range, θY±4°Sensitivity, θXθY0.00001°&nb... -
Fiber Couplers:WN04FC
ModelWN04FCKey Features Three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers New high-resolution, 0.25 mm XYθXθY adjustment screws,0.5 mm Z-adjustment New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersRange Z6mmRange X±2mmRange Y±2mmSensitivity, XY0.01μmRange, θX±4°Range, θY±4°Sensitivity, θXθY0.00001°&nb... -
Fiber Couplers:WN03FC
ModelWN03FCKey Features Single-mode coupling approaching theoretical maximum Easy to use Sub-micron resolution Versions for bare, connectorized, or polarization-preserving fibersRange Z6mmRange X±2mmRange Y±2mmRange, θX±4°Range, θY±4°Range Mcroscope13mmRange,θXθY±4°Weight0.6kg -
Fiber Couplers:WN01FC
ModelWN01FCKey Features Three or five degrees of precision positioning for bare, connectorized, or polarization-preserving fibers New high-resolution, 0.25 mm XYθXθY adjustment screws,0.5 mm Z-adjustment New large diameter knobs with integral hex hole for increased sensitivity Non-influencing locks to maintain stable alignment Wide assortment of interchangeable fiber holdersRange Z6mmRange X±2mmRange Y±2mmRange, θX±4°Range, θY±4°Weight0.2kg -
Fiber Mounts:WN03FM
ModelKey Features Mounts microscope and laser diode objective lenses Standard 0.800-36 RMS threadWN03FM -

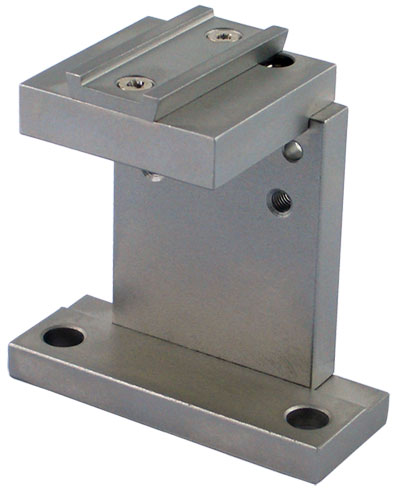

Fiber Mounts:WN07FM
ModelKey Features Fixed platform to mount a component between two positioning stages WN07FM -

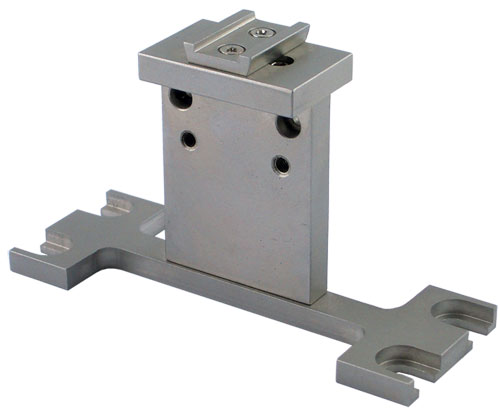

Fiber Mounts:WN06FM
ModelKey Features Fixed platform to mount a component next to a positioning stage WN06FM
