Beam Steerers:WN03BS180

Short Description:

Send email to us

Product Detail

Product Tags

Model

WN03BS180

Key Features

Precise beam direction and height control
Two mirror mounts with precision tip/tilt and rotation
Fine angular adjustment with 5 arc sec sensitivity
High-stability 1 in. (25.4 mm) diameter stainless steel post
Securely mounts anywhere on an optical table
Compatible with standard 1 in. (25.4 mm) diameter mirrors

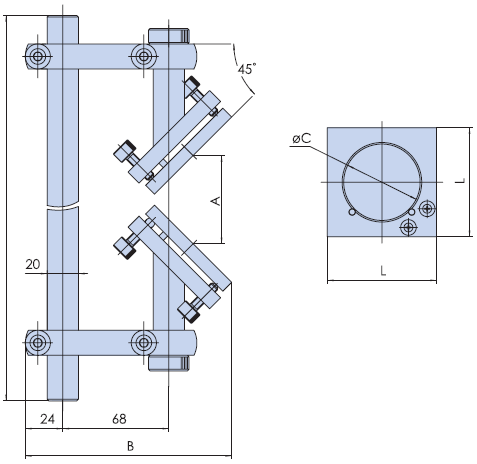

A

50-180mm

57-180 mm

B

132 mm

137 mm

C（Aperture Diameter）

50mm

60 mm

H

324mm

334mm

L

70mm

80mm

Entrance Aperture Height

180mm

Angular Adjustment Range

±4°

Weight

1kg
