Model | WN01BS180 | Key Features | - Precise beam direction and height control
- Two mirror mounts with precision tip/tilt and rotation
- Fine angular adjustment with 5 arc sec sensitivity
- High-stability 1 in. (25.4 mm) diameter stainless steel post
- Securely mounts anywhere on an optical table
- Compatible with standard 1 in. (25.4 mm) diameter mirrors
|
|

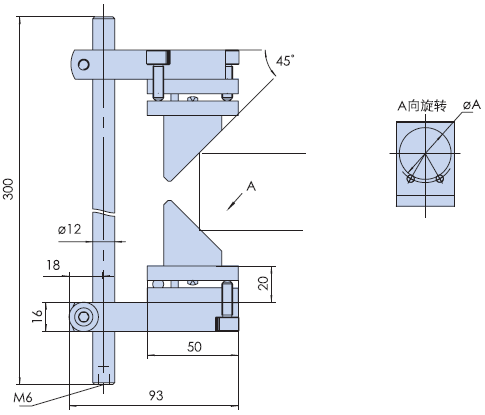

A（Aperture Diameter） | 20mm | 25 mm | 30 mm |
B | 32 mm | 32 mm | 36 mm |
Entrance Aperture Height | 180mm |
Angular Adjustment Range | ±4° |
Weight | 0.8kg |
| |
