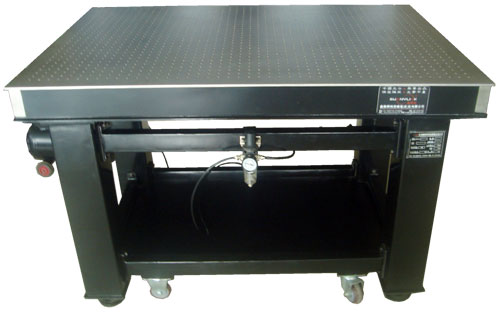

Automatic Leveling Tables:WN01AL Series
|
Model & Size(mm) |
L-W-H |
Supports & Mounting Holes |
|
WN01AL600x600x80 |
600-600-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL750x750x80 |
750-750-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL900x600x80 |
900-600-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL1200x800x100 |
1200-800-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL1500x1000x100 |
1500-1000-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL1800x1200x200 |
1800-1200-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL2000x1000x200 |
2000-1000-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL2000x1200x200 |
2000-1200-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL2000x1500x200 |
2000-1500-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL2400x1200x200 |
2400-1200-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL2400x1500x200 |
2400-1500-800 |
4 Supports M6 on 25mm Grid |
|
WN01AL3000x1000x300 |
3000-1000-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL3000x1200x300 |
3000-1200-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL3000x1500x300 |
3000-1500-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL3500x1200x300 |
3500-1200-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL3500x1500x300 |
3500-1500-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL4000x1500x300 |
4000-1500-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL4500x1500x300 |
4500-1500-800 |
6 Supports M6 on 50mm Grid |
|
WN01AL5000x1500x300 |
5000-1500-800 |
8 Supports M6 on 50mm Grid |
|
WN01AL6000x1500x300 |
6000-1500-800 |
8 Supports M6 on 50mm Grid |
|
WN01AL8000x1500x300 |
8000-1500-800 |
8 Supports M6 on 50mm Grid |
1. Optical Tops
Construction: Honeycomb core sandwiched structure
Core: Plated steel honeycomb
Top Skin: 5mm thickness ferromagnetic stainless steel plate, brush finished
Side Walls: carbon steel plate with damped wood composite, vinyl covered finish
Bottom Skin: 5.0mm thickness carbon steel plate epoxy painted finish
Surface Flatness: <0.05mm/m2
SurfaceCoarseness: <0.8um
Swing: <1.2um
Mounting holes:Metric: M6-1.0 holes on 25mm or 50mm grid
Damping: Broadband standard damping
2. Pneumatic Isolation Supports
Vibration Isolation: Air Spring Isolations
Natural Frequency of System: Vertical: 1.2-1.8Hz Horizontal: 1.2-1.8Hz
Damping: Air Damping by Orifice
Leveling: Auto Leveling by 3 Automatic Leveling Valves
Leveling Repeatability: ±0.05mm
Load Capacity: 400kg-5000kg
Air Supply: 5-7kg/cm2 Compressed Air
3. Exclusive Air Compressor
Air Pressure: 0.2-0.6Mpa
Pressure Control: Preset Minimum Pressure by Automatic Switch
Air Delivery: 30l/min. @80PSI
Tank Capacity: 2Liters
Electrical Power: 220VAC, 200W
Size (WXDXH): 510X290X500(mm)
Shipping Weight: 23kg
