3-axis XYZ Rotary Stage WN302RA200
Features
Standard stepper motors and RS232 interface.
Compatible with the Models WNMPC08 Series of Motion Controller Rotating shafts using multi - channel technology of precision processing, with high precision, large capacity and long life
Using precision worm structure , exercise comfortable, forward and reverse rotation can be arbitrary and minimal backlash Can increase limit function, initial zero, change servo motor, add encoder, accept customed

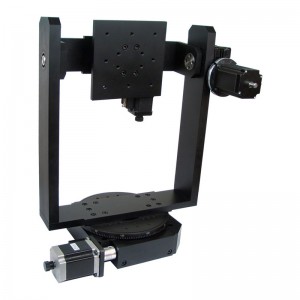

θX, θY, θZ Rotation Stage
This three axis rotation system is used to position specimens and sensors in 3D space for simulation and calibration. This custom motion system is built with standard rotation stages, two WN02RA100M and one WN03RA200M and provides a high-performance and high-accuracy positioning by the motors. If you require the 360°of continuous rotation, the motion system must be designed by Slip Ring, like the picture showed below. It will achieve the 360°
continuous rotation for all three axes.
By the way, we also can provide fully customized motion systems, designed from the bottom up, to meet your unique requirements or custom applications. Examples of customer-specified
modifications are cable lengths, special connectors, interface hole patterns, higher speed, etc.
|
Model |
WN302RA200M |
|
|
Structure |
Angle Range |
360° |
|
Table Size |
150×150mm |
|
|
Transmission Ratio |
180∶1 |
|
|
Actuator Type |
Worm Gear |
|
|
Travel Guide |
Bearing |
|
|
Stepper Motor(1.8°) |
SST57D3301 |
|
|
Base Material |
Aluminum Alloy |
|
|
Surface Treatment |
Black-anodized |
|
|
Load Capacity |
10kg |
|
|
Weight |
10kg |
|
|
Resolution |
0.01°=36″(non MicroStep) 0.0005°=1.8″(20 MicroStep Driver in use) |
|
|
Accuracy Description |
Speed |
25°/sec |
|
Repeatability |
0.005°=18″ |
|
|
Positional Accuracy |
0.01°=36″ |
|
|
Surface Roundness |
15µ |
|
|
Backlash |
0.005°=18″ |
|
|
Transversal Deviation |
20µ |
|
|
Lost Motion |
0.005°=18″ |
|
|
Parallelism |
100µ |
|
