Motorized Goniometric Stages Goniometer Platform ±10°
Item Number WN01GA10 Rotation Range ±10° Platform 65mm × 65mm (2.56″ x 2.56″) Worm Gear Ratio 352:1 Point of Rotation 75mm (2.95″) ±0.2mm/0.0079″ -
Motorized Lab Jack 5mm Travel Range Electric Lifting Platform
Item Number WN04VA5 Travel Range 5mm (0.20″) Dimension of Platform 50mm x 64mm (1.97″ x 2.52″) Drive Mechanism Grinding Screw (M7 x 0.5mm) Travel Guide Crossed- Roller Bearing -
Stainless Steel High-Precision Manual Translation Stage
Item Number WN102TM13H WN103TM13H WN104TM13H WN107TM25H WN108TM25H Travel Range 25mm (0.98″) Platform 65mm × 65mm (2.56” x 2.56″) Actuator Type Micrometer Head in Center Adjustment 0.5mm/Revolution, 0.01mm/Scale -
Aluminum Alloy High-Precision Manual Translation Stage Travel range 12.5mm to 50mm
Item Number WN113TM25M WN115TM50M WN116TM50M Travel Range 25mm (0.98″) Platform 53mm × 53mm (2.09” x 2.09″) Actuator Type Micrometer Head in Side Adjustment 0.5mm/Revolution, 0.01mm/Scale -

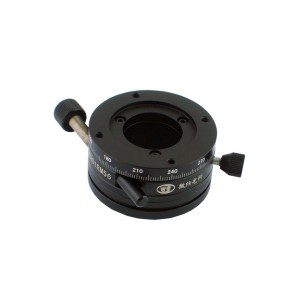

Precision Rotation Stage
Item Number WN01RM56 WN01RM73 WN01RM82 WN01RM82-1 Platform Ø56mm (Ø2.20″) Clear Aperture Ø26mm (Ø1.02″) Actuator Type Fine Adjustment Screws in Side -
Miniature Motorized Rotation Stage
Item Number WN01RA60M WN02RA100M-DC WN03RA200H WN03RA200M WN04RA300M Rotation Range 360° of Continuous Rotation Diameter of Platform Ø60mm (Ø2.36″) Drive Mechanism Worm Gear Worm Gear Ratio 90:1 -
Long-Travel With High Load Capacity Of Motorized Lab Jack 300mm Of Vertical Travel
Item Number WN03VA300 Travel Range 300mm (11.81″) Dimension of Platform 400mm x 200mm (15.75″ x 7.87″) Drive Mechanism Gear Motor with High Precise Ball Screw Travel Guide Slide Rail -
Aluminum Alloy High-Precision Manual Translation Stage Travel distance ±12.5mm
Item Number WN101TM25D WN102TM25D Travel Range 25mm (0.98″) Platform 65mm × 65mm (2.56” x 2.56″) Actuator Type Digital Micrometer Head in Center Adjustment 0.5mm/Revolution, 0.01mm/Scale -
Aluminum Alloy High-Precision Manual Translation Stage Travel range ±12.5mm
Item Number WN114TM25M Travel Range 25mm (0.98″) Platform 110mm × 80mm (4.33” x 3.15″) Actuator Type Micrometer Head in Center Adjustment 0.5mm/Revolution,0.01mm/Scale -
Motorized Goniometric Stages Goniometer Platform ±15°
Item Number WN04GA15 WN02GA15 Rotation Range ±15° Platform 160mm × 160mm (6.3″ x 6.3″) Worm Gear Ratio 400:1 Point of Rotation 139mm (5.47″) ±0.2mm/0.0079″ -
Ordinary Precision Linear Stages ±6.5mm to 12.5mm Travel Distance
Item Number WN102TM13L WN104TM13L WN105TM13L WN106TM13L WN107TM13L WN110TM25L Travel Range 13mm (0.51″) Platform 34mm × 34mm (1.34” x 1.34″) Actuator Type Micrometer Head in Side Adjustment 0.5mm/Revolution, 0.01mm/Scale Travel Guide Ball Bearing -
X, Y Miniature Microscope Stage, 20mm (0.79″) Travel
With RS232 Interface and can be Controlled by Motion Controller WNMPC07 Series. The Compact Size and High Performance can convert a Routine Microscope into a Highly Productive Asset.
Universal Mounting Makes this Stage an Excellent Choice for Metrology and Inspection Applications.
